对于n个顶点的连通图，只需n-1条边就可以使得这个图连通，不应该有回路，所以生成最小树只需找出n-1条权值最小且无回路的边即可

#include<iostream>
#include<algorithm>
#include<vector>
using namespace std;

static constexpr int N=100;
static constexpr int INF = INT_MAX;

/**
 * @brief Prim最小生成树
 * @param n 带权邻接矩阵大小
 * @param u0 开始顶点
 * @param c 带权邻接矩阵
*/
void Prim(int n,int u0,int c[N][N]) {
    bool s[N] = {false};//为true则代表加入了s集合
    int lowcost[N];
    int closest[N];
    for (int i = 1; i <= n; i++) {//初始化
        if (i != u0) {
            lowcost[i] = c[u0][i];
            closest[i] = u0;
            s[i] = false;//未加入生成树
        }
        else {
            lowcost[i] = 0;
            closest[i] = u0;
            s[u0] = true;//将起点加入最小生成树
        }
    }
    //生成最小生成树
    for (int i = 1; i <= n; i++) {
        //在集合中寻找距离s集合最近的顶点（非s集合中顶点）
        int t = u0;
        int temp = INF;
        for (int j = 1; j <= n; j++) {
            if (!s[j] && (lowcost[j] < temp)) {
                temp = lowcost[j];
                t = j;
            }
        }
        if (t == u0) {//找不到t
            break;
        }
        s[t] = true;
        for (int j = 1; j <= n;j++) {
            //更新lowcost closest
            if (!s[j] && c[t][j] < lowcost[j]) {
                lowcost[j] = c[t][j];
                closest[j] = t;
            }
        }
    }
    cout << "closest[]" <<endl;
    for (int i = 1; i <= n; i++) {
        cout << closest[i] << " ";
    }
    cout << "\nlowcost[]" << endl;
    for (int i = 1; i <= n; i++) {
        cout << lowcost[i] << " ";
    }
    cout << endl;
}

void Print_Map(int c[N][N],int n) {
    for (int i = 1; i < n; i++) {
        for (int j = 1; j <= n; j++) {
            if (c[i][j] == INF) {
                cout << "INF ";
            }
            else {
                cout << c[i][j] << " ";
            }
        }
        cout << endl;
    }
}


int main(int argc,char**argv) {
    int m_map[N][N];
    int s=0, e;
    vector<vector<int>>c = {
        {0,0,0,0,0,0,0,0},
        {0,0,23,-1,-1,-1,28,36},
        {0,23,0,20,-1,-1,-1,1},
        {0,-1,20,0,15,-1,-1,4},
        {0,-1,-1,15,0,3,-1,9},
        {0,-1,-1,-1,3,0,17,16},
        {0,28,-1,-1,-1,17,0,25},
        {0,36,1,4,9,16,25,0}};
    int n = c.size() - 1;
    for (int i = 1; i <= n; i++) {
        for (int j = 1; j <= n; j++) {
            m_map[i][j]=c[i][j];
            if (m_map[i][j] == -1) {
                m_map[i][j] = INF;
            }
        }
    }
    Prim(n,1,m_map);
    Print_Map(m_map,n);
    return 0;
}

/*
closest[]
1 1 7 7 4 5 2
lowcost[]
0 23 4 9 3 17 1
0 23 INF INF INF 28 36
23 0 20 INF INF INF 1
INF 20 0 15 INF INF 4
INF INF 15 0 3 INF 9
INF INF INF 3 0 17 16
28 INF INF INF 17 0 25
*/

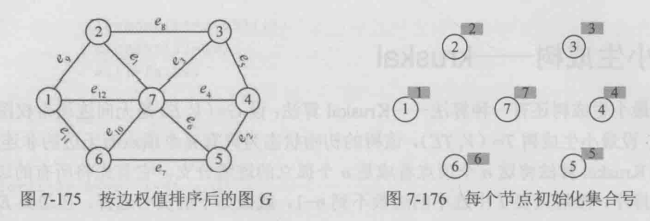

Kruskal算法

每次挑选权值最小的边，如果两个顶点的集合号不同，则将两个集合的集合号都改为二者当中最小的，最后只有一个集合，则得到最小生成树

#include<iostream>
#include<vector>
#include<algorithm>

using namespace std;

struct Edge {
    int u;
    int v;
    int w;
};

struct Node {
    int set_num;
};

bool Merge(vector<Edge>& e, vector<Node>& nodes, int e_index) {
    int u = e[e_index].u;
    int v = e[e_index].v;
    int p = nodes[u].set_num;
    int q = nodes[v].set_num;
    if (p == q) {//二者集合号相同则合并失败
        return false;
    }
    //检查所有节点
    for (int i = 1; i < nodes.size(); i++) {
        if (nodes[i].set_num == q) {//将q集合并入p集合
            nodes[i].set_num = p;
        }
    }
    return true;
}

int Kruskal(vector<Edge>&e, vector<Node>&nodes) {
    if (nodes.size() == 0)return 0;
    int ans = 0, n = nodes.size()-1;
    for (int i = 0; i < e.size(); i++) {
        if (Merge(e,nodes,i)) {//尝试合并
            //合并成功
            cout << e[i].u << " " << e[i].v << " " << e[i].w << endl;
            ans += e[i].w;
            n--;
            if (n == 1) {//合并成功了n-1次
                return ans;
            }
        }
    }
    return 0;
}

int main(int argc, char** argv) {
    vector <Edge>e = {
        {1,2,23},
        {2,3,20},
        {3,4,15},
        {4,5,3},
        {5,6,17},
        {1,6,28},
        {2,7,1},
        {3,7,4},
        {4,7,9},
        {5,7,16},
        {6,7,25},
        {1,7,36} };
    //将边根据权值排序
    std::sort(e.begin(), e.end(), [](Edge&e1,Edge&e2)->bool {
        return e1.w < e2.w;
    });
    //顶点集合号始化
    vector<Node> n = { {0},{1},{2},{3},{4},{5},{6},{7} };
    Kruskal(e,n);
    return 0;
}

/*
2 7 1
4 5 3
3 7 4
4 7 9
5 6 17
1 2 23
*/

（1）时间复杂度，对边进行排序O(eloge)，需要进行n-1次合并，每次合并遍历n个顶点，O(n^{2)，总时间复杂度为O(n}2)。

（3）优化，如果用并查集可以优化合并集合的时间，总的时间复杂度将会优化为O(eloge)。
